24VDC-220VDC input

24VDC-220VDC and 24VAC-220VAC input CBS compatible exit sign with IP65 rating and wall/ceiling mounted bracket.

Key words:

Classification:

Emergency Exit Light

Centralized Emergency Power Supply

Sales Hotline:

086-0760-8985 2836

Product inquiry

Related Products

Description

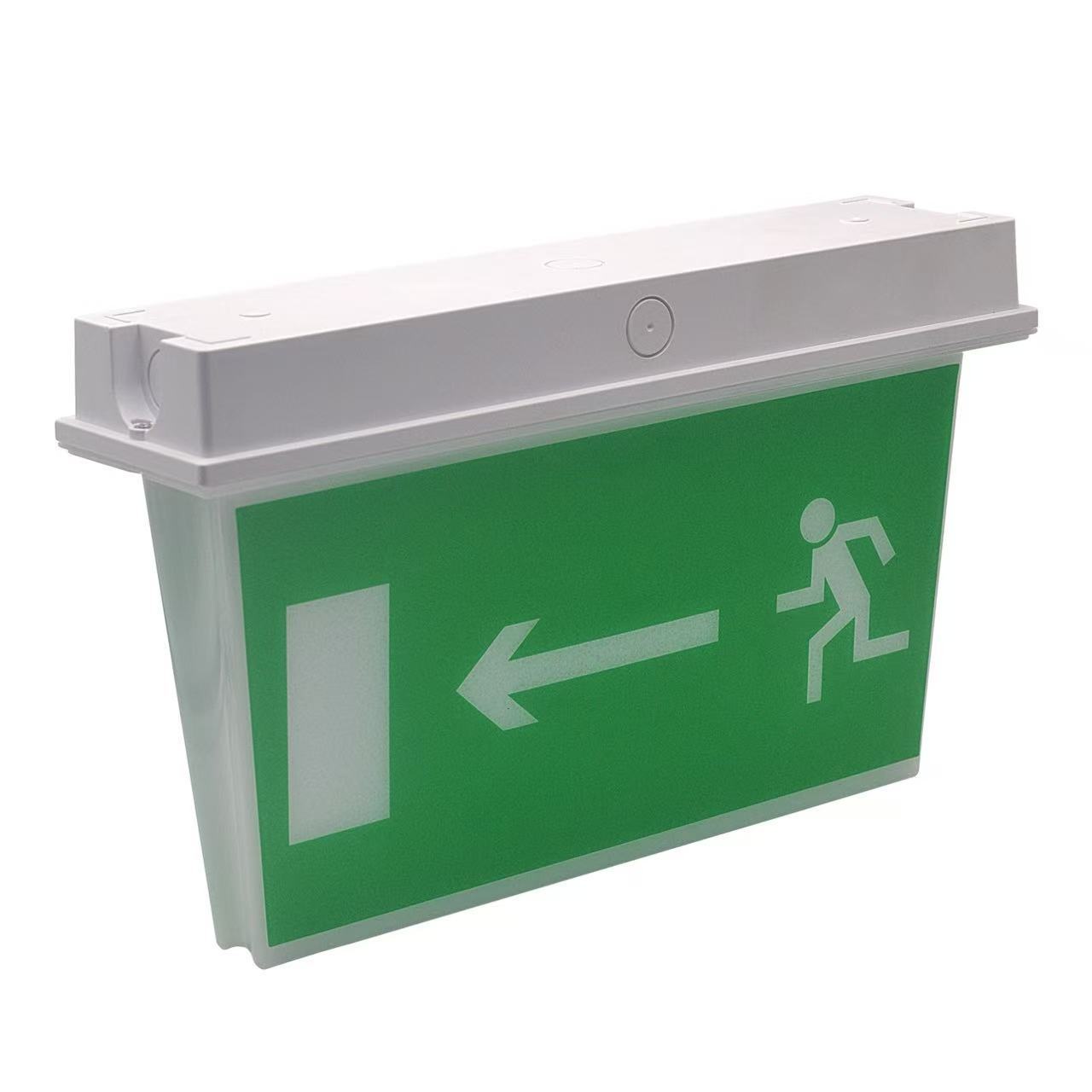

IP65 Exit Box JY-5043 with Centralized-Power-Supply design for CBS.

1. Features & Parameters

Overview of Centralized Power Emergency Exit Signs

Input Voltage: 24-220Vac and 24-220Vdc integrated;

Protection Rating: IP65 (suitable for harsh environments);

Material: V-0 PC, flame-retardant;

Pictogram: Single-sided / Double-sided pictogram optionals;

Operation: Maintained W/O pictogram, Non-maintained with pictogram;

Installation: Wall mounted and ceiling mounted (with bracket)

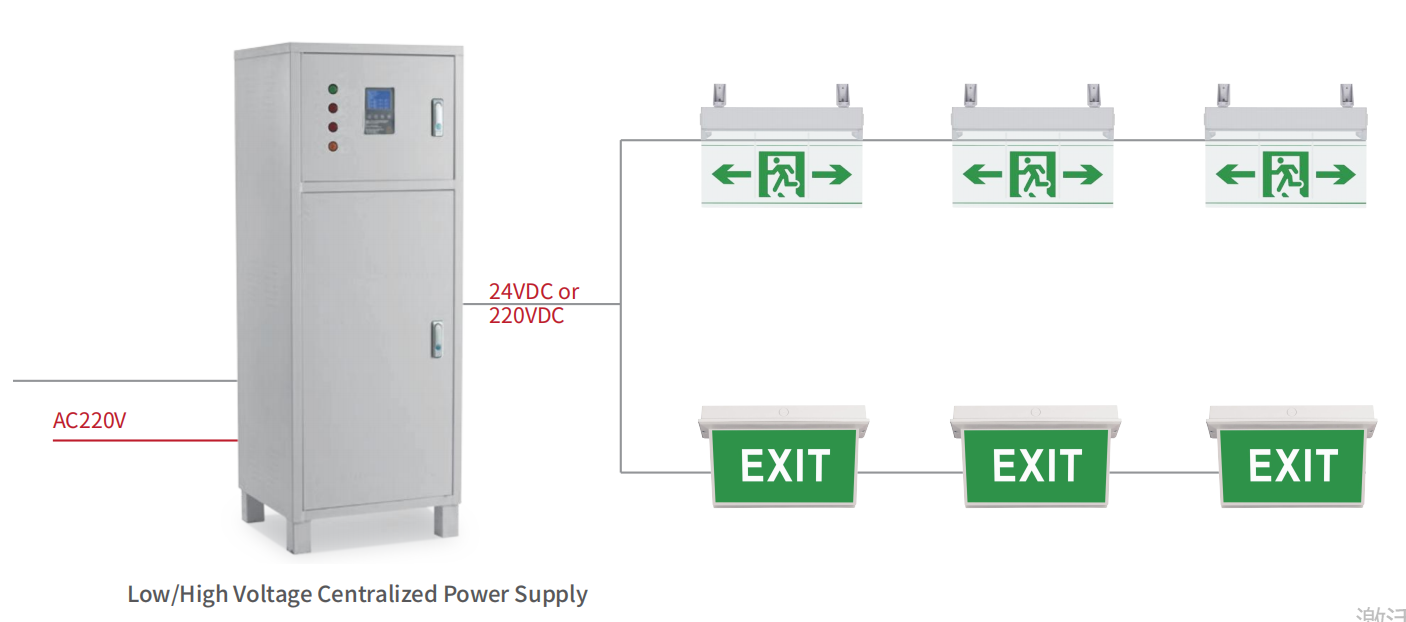

Working Principle of Centralized Power Emergency Exit Signs

The centralized power system provides power to multiple sign lights through the main battery unit, usually equipped with a conversion device to convert the input power (such as 220V AC) into a low voltage DC power supply (e.g., 24V or 36V DC), which is suitable for smaller commercial or industrial areas, offering lower voltage and higher safety. Alternatively, it can be converted into high voltage (220V DC), typically used in large-scale installations with more equipment, providing stronger support for the emergency lighting needs of large buildings. The system distributes power based on actual power demand, ensuring that the emergency lights continue to work after the main power is cut off.

Advantages of Jinyi's Centralized Power System Compared to Standalone Emergency Lights (with Built-in Batteries)
- Unified battery management and monitoring.
- Combining low voltage 24V and high voltage 220V to achieve a voltage range of 24V-220VDC.
- Reduced equipment maintenance costs and easier overall management.
- Supports extensive coverage and long-duration emergency lighting.
